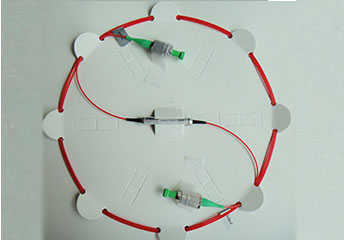

PM Optical Isolator 2000nm 1W 3W 5W 10W

PM Optical Isolator 2000nm 1W 3W 5W 10W

Name: PM Optical Isolator 2000nm 1W 3W 5W 10W

Class: 2000nm Fiber Components

Type: Polarization Maintaining Fiber Isolator

: Test Report

Previous: PM Optical Isolator 2000nm 500mW

Next: Fiber Optical Isolator 2000nm 500mW

Specifications:

Parameters	Unit	Values
Stage		Single Stage	Dual Stage
Center Wavelength (λc)	nm	2000
Operating Wavelength Range	nm	±50
Min. Isolation at 23℃	dB	18	32
Typ. Insertion Loss at 23℃	dB	0.8	1.0
Max. Insertion Loss at -5℃-70℃	dB	1.2	1.4
Min. Extinction Ratio(only for B type)	dB	18
Min. Extinction Ratio(only for F type)	dB	20
Min. Return Loss (Input/Output)	dB	50/50
Max. Optical Power (CW)	W	1, 3, 5 or Specify
Max. Tensile Load	N	5
Fiber Type		PM 1550 Fiber , PM 1950 Fiber or Specify
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85

Ordering Information:

A	B	C	D	E	F	G
Wavelength	Stage	Handling Power	Axis Alignment	Connector Type on Port 1, 2	Fiber Jacket on Port 1, 2	Fiber Length
20 = 2000nm X=other	S = Single Stage D = Dual Stage	01 = 1W 02 = 2W 05 = 5W X = other	F - Fast Axis Blocked B - Both Axis Working	1 = FC/UPC 2 = FC/APC 3 = SC/UPC 4 = SC/APC N=None X=other	B = 250um Panda Fiber L = 900um Loose Tube X=other	0.8 = 0.8m X:other

PM Optical Isolator 2000nm 1W 3W 5W 10W
