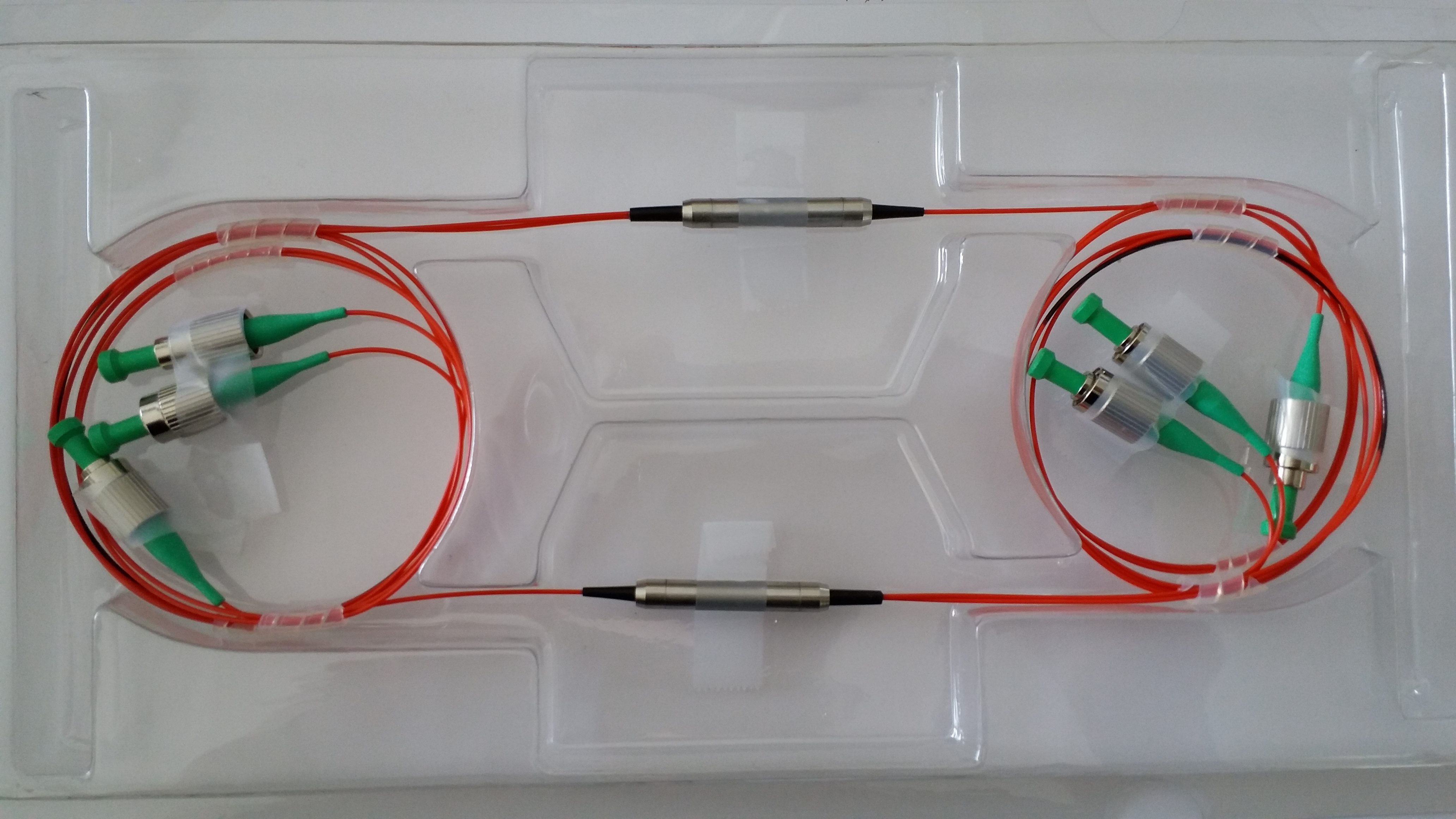

2Xfdgfg-2X2 fdfd fdg dfg2 Polarifdgfg-2X2 fdfd fdg dfgzation Maintaining Optfdgfg-2X2 fdfd fdg dfgical Switchfdgfg-2X2 fdfd fdg dfg
ANFIBER's PM Panda fiber.these devices can maintain the polarization of the signal. For a variety of applications, latching as well as non-latching variants are available. The Optical Switches series is characterized with a wide operating wavelength range, low insertion loss, high extinction ratio and excellent stability and reliability.
Applications of PM Optical Switches
Re-Configurable OADM
Optical network protection & restoration
Instrumentation,Testing & Measurement
Optical Cross and connector system
Polarization maintaining optical system
Features of PM Optical Switches
Wide Wavelength Range
Low insertion loss
High extinction ratio
Bi-directional Operation
Excellent stability and reliability
Specifications of PM Optical Switches
Parameter |
Unit |
Value |
|
Type |
- |
2x2 |
|
Wavelength Range |
nm |
1260~1650 |
|
Test Wavelength |
nm |
1310/1550 |
|
Max. Insertion Loss |
dB |
1.0 |
|
Max. Temperature Dependent Loss |
dB |
0.2 |
|
Min. Extinction Ratio |
Both of axis working |
dB |
20 |
Min. Return Loss |
dB |
50 |
|
Min. Cross Talk |
dB |
50 |
|
Max. Switch Time |
ms |
10 |
|
Switch Power Voltage |
- |
+5 |
|
Max Optical Power Handling (CW) |
mW |
≤500 |
|
Fiber Type |
- |
PM Panda Fiber |
|
Operating Temperature |
℃ |
-10~+70 |
|
Storage Temperature |
℃ |
-40~+85 |
|
Package Dimensions |
mm |
L27*W12*H8.2 |
|
For device with connector, IL is 0.2dB higher, RL is 3dB lower, ER is 2dB lower; |
|||
The default connector key is aligned to slow axis; |
|||
|
|
|
|
Optical Route
Dimension
Ordering Information:ANFIBER-FSW-2X2-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
Port |
Test Wavelength |
Mode |
Fiber Type |
Tube Type |
Fiber Length |
Connector |
2X2 |
1480: 1480nm 1550: 1550nm X:Others |
L: Latching N: Non-Latching |
PM:PM Fiber X: Others |
25:250um Bare Fiber 90: 900um Loose Tube X: Others |
05: 0.5m 10: 1.0m 15: 1.5m X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
